ISSUE 152.1 | September 2, 2026
the integrity flash-Lite
A Special Analysis of Developments in the Space Domain
China’s GEO-Based Space Domain Awareness Satellites
Neighborhood Watch vs Targeted Patrol
Geostationary orbit, approximately 35,786 kilometers above the equator, is among the most strategically important regions of space. Satellites in GEO appear fixed over a point on Earth, making the orbit ideally suited for persistent military and commercial communications, missile warning, signals intelligence, weather monitoring, and other missions requiring continuous regional coverage. These spacecraft often provide services that are essential to national command and control, nuclear warning, intelligence collection, and global military operations. Understanding the condition, configuration, and behavior of objects in this orbital regime is therefore a critical element of space-domain awareness.
Monitoring GEO from the ground, however, provides only part of the picture. Optical telescopes can track an object’s location and detect changes in brightness or configuration, radars can refine orbital estimates, and terrestrial signals-intelligence systems can characterize some emissions. These sensors remain constrained by distance, atmospheric distortion, weather, viewing geometry, resolution, and the possibility that a spacecraft is not transmitting when it passes through a sensor’s field of view. Accurately determining a satellite’s configuration, payloads, condition, and potential threat capabilities requires more than maintaining its orbital track. It requires characterizing the object, a mission best performed by sensors operating in or near GEO that can observe a spacecraft from multiple geometries and, when necessary, maneuver into its vicinity. The United States began deploying this capability in July 2014 with the Geosynchronous Space Situational Awareness Program, whose satellites were designed to conduct enhanced surveillance and rendezvous and proximity operations for the characterization of objects of interest.
China followed with a growing group of maneuverable GEO surveillance and inspection satellites. Shijain (SJ)-17 reached orbit in November 2016, followed by TJS-3 in December 2018, the paired Shiyan (SY)-12 01 and SY-12 02 satellites in December 2021, and SJ-23 in January 2023. Although China has disclosed little about their payloads or operational capabilities, their orbital behavior reveals two distinct approaches to monitoring the GEO environment. These activities are consistent with inspection, surveillance, servicing, and military or intelligence space-domain-awareness missions.
The first operational mode, described in this article as Focused Patrol, has been demonstrated by SJ-17 and TJS-3. Rather than simply passing objects as they travel through the belt, focused patrollers relocate toward selected spacecraft, remain in their vicinity for weeks or months, and in some cases conduct cross-track maneuvers to reduce differences in orbital inclination and improve the observation geometry. SJ-17 employed this approach during its 2017–2020 inspection campaigns, including an unusually maneuver-intensive response to the ChinaSat-1C anomaly in 2018. TJS-3 has followed a similar target-focused pattern since 2019. These operations are indicative of a characterization mission in which sustained observation of a particular spacecraft is more important than broad coverage of the belt. They are also comparatively fuel intensive because rapid relocation, plane matching, close station-keeping, and extended loiter operations require considerably more delta-v than periodic fly-by collection.
The second mode, described here as Neighborhood Watch, is represented by SY-12 01, SY-12 02, and SJ-23. The three satellites operate as a coordinated patrol, repeatedly entering drift orbits slightly above or below the GEO belt and moving east and west through the region. Their changing geometry creates recurring opportunities to observe other GEO spacecraft during fly-bys without requiring the patrol satellites to stop near each target. Maneuvers have been comparatively infrequent, and the satellites have made no observed attempt to match a target’s orbital plane or even maintain their own inclination through routine north-south stationkeeping. As a result, their cumulative delta-v expenditure has remained low compared with SJ-17 and TJS-3. China appears willing to trade sustained access to a specific target for broad, persistent coverage of the GEO neighborhood, accepting that useful collection opportunities will arise as the patrol formation repeatedly passes other resident space objects. The contrast between focused patrol and neighborhood watch likely reflects differences in spacecraft capability, sensor design, propulsion, collection requirements, and assigned mission.
The Focused Patrol: SJ-17 and TJS-3
SJ-17 was China’s first GEO satellite with rendezvous-and-proximity operations (RPO) capability. Launched 3 Nov 2016 on the maiden flight of the Long March 5 from Wenchang, SJ-17 was the first Chinese satellite to demonstrate RPO in the geostationary belt. From 2017-2021 SJ-17 drifted between 98–163°E and performed inspection of 5 Chinese COMSATS. Unclassified sources note the satellite carried an onboard optical surveillance sensor and a reported signals-collection payload. U.S. Space Command testimony also credited it with a robotic arm assessed as dual-use.
SJ-17 was China’s most maneuver-intensive GEO inspector, conducting rapid relocations, extended loiter operations, and close approaches to other Chinese satellites. Its most significant campaign occurred in 2018, when SJ-17 changed its orbital plane by approximately 4° and entered a high-rate drift orbit in apparent support of the ChinaSat-1C anomaly response. During the principal westward relocation from 10 February to 19 March, SJ-17 drifted at an average rate of approximately 3.8° per day, with its SMA-derived drift rate briefly reaching about 4.2° per day. SJ-17 later reversed the plane change and decreased its inclination to near 0°. China discontinued SJ-17’s north-south stationkeeping in early 2020, after which its inclination increased through natural luni-solar drift.
It appears SJ-17 recently reached the end of its operational lifetime as China raised it into graveyard orbit in November 2025 and completed the transition by late December 2025.

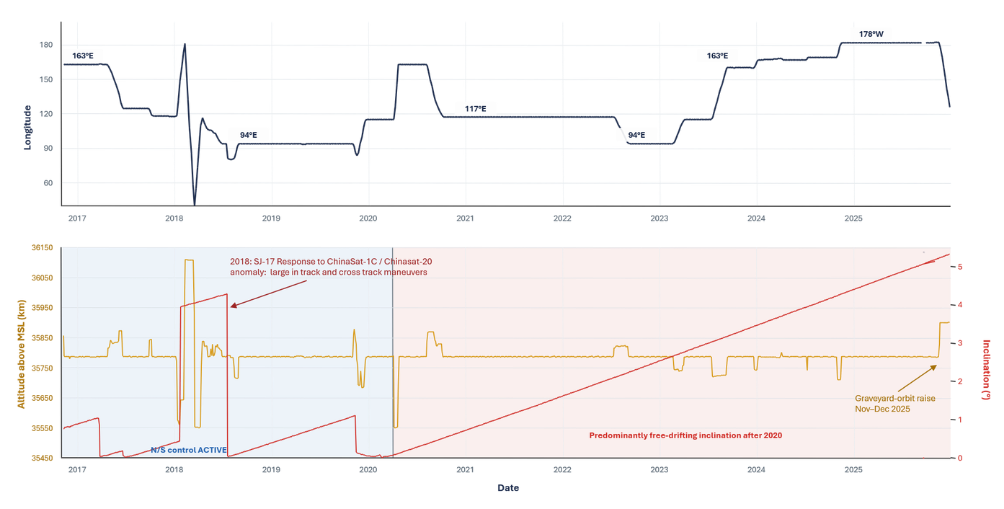

SJ-17 Loitered At Specific Longitudes for Months/Years at a Time (above)
SMA and Inclination Maneuvers (below) Note Final Cross Track Maneuver in 2020
(based on data from Celestrak.org)

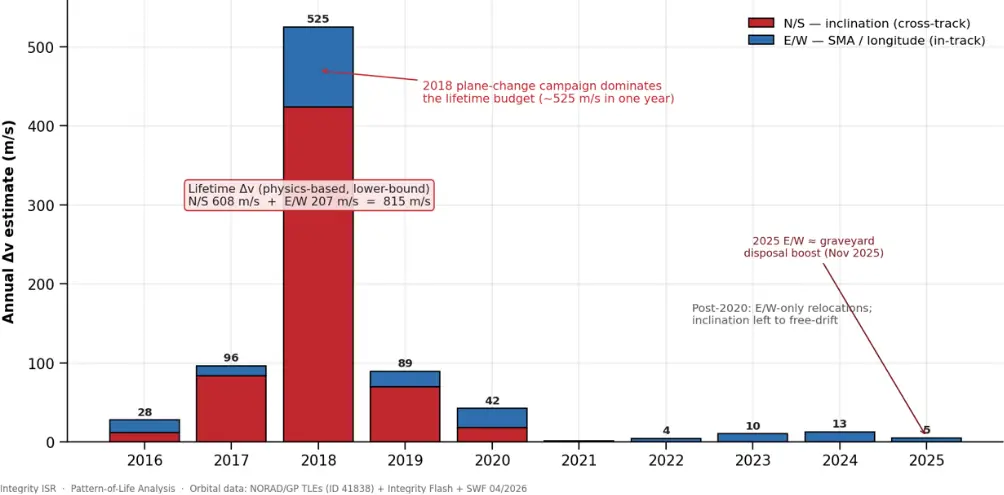

Estimated SJ-17 Delta-V Use From GEO Arrival to Grave
(based on data from Celestrak.org)
| Year | N/S (incl.) m/s | E/W (SMA) m/s | Total m/s |
|---|---|---|---|
| 2016 | 12 | 15.7 | 27.7 |
| 2017 | 84 | 12.4 | 96.4 |
| 2018 | 424.1 | 101.2 | 525.3 |
| 2019 | 69.6 | 19.6 | 89.2 |
| 2020 | 17.8 | 24.5 | 42.3 |
| 2021 | 0 | 1.7 | 1.7 |
| 2022 | 0 | 4.2 | 4.2 |
| 2023 | 0 | 10.3 | 10.3 |
| 2024 | 0 | 12.7 | 12.7 |
| 2025 | 0 | 4.9 | 4.9 |
| TOTAL | 607.5 | 207.2 | 814.7 |
Estimated SJ-17 Delta-V Use by Year and Type in Table View
(based on data from Celestrak.org)
TJS-3 launched 24 Dec 2018 on a Long March 3B from Xichang and China labelled the satellite a “communications technology experiment.” Western analysts assess a potential military mission. Whatever its actual mission, TJS-3’s maneuvers have been notable from the start. First, when TJS-3 reached GEO China appeared to conduct on-orbit testing with its Apogee Kick Motor (AKM). Normally disposed after releasing their payload, the TJS-3AKM (43917) maneuvered to 59°E and station-kept 100–200 km away from TJS-3, behaving like a subsatellite, not a spent motor. Since departing the AKM in May 2019, TJS-3 has sporadically relocated across the eastern GEO belt (50–178°E), pausing near US military COMSATS and Chinese assets such as TJS-10 (58204). TJS-3 apparently ceased north-south stationkeeping in October 2023, allowing its inclination to increase through natural luni-solar drift and signaling a transition to a less fuel-intensive phase of operations. Most recently TJS-3 was in proximity with the GEO imager Gaofen-13 02 (55912). As with SJ-17 these collections were deliberately planned and last for extended periods of time.
China will likely continue operating TJS-3 for several more years, but the apparent end of north-south stationkeeping will progressively constrain its collection opportunities. As TJS-3’s inclination grows through natural luni-solar drift, differences between its orbital plane and those of potential targets will increase, reducing the frequency and duration of favorable close-approach geometries. China can partially offset this limitation through careful timing and in-plane maneuvering, but sustained characterization of low-inclination GEO targets will become increasingly difficult unless TJS-3 resumes cross-track maneuvers.

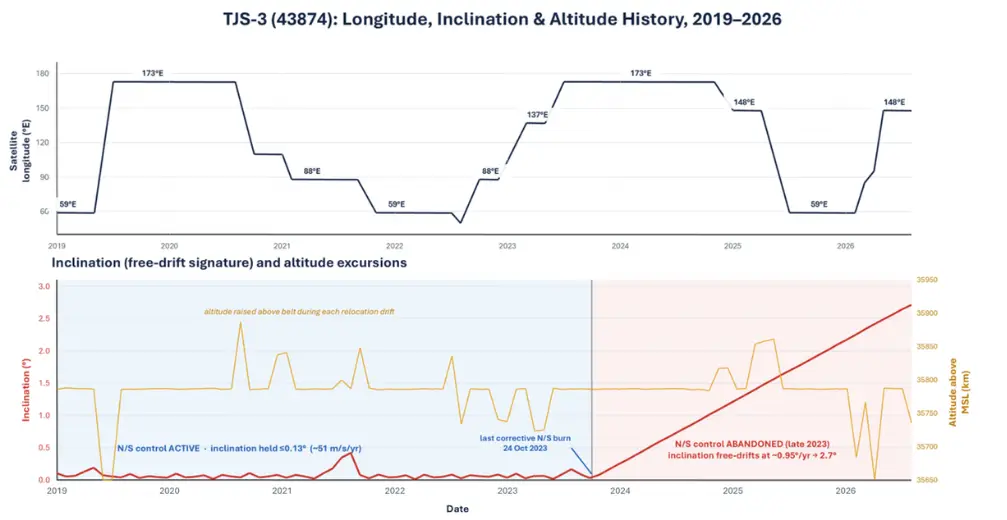

TJS-3 Loitered At Specific Longitudes for Months at a Time (above)
SMA and Inclination Maneuvers (below)
Note Final Cross Track Maneuver in late-2023
(based on data from Celestrak.org)

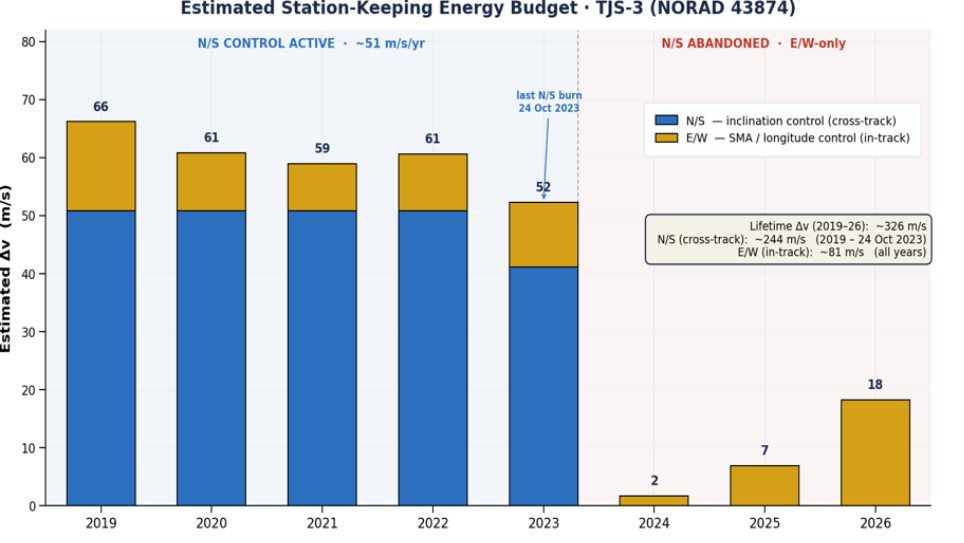

Estimated TJS-3 Delta-V Use From GEO Arrival to Aug 2026
(based on data from Celestrak.org)
| Year | N/S (incl.) m/s | E/W (SMA) m/s | Total m/s |
|---|---|---|---|
| 2019 | 50.8 | 15.4 | 66.2 |
| 2020 | 50.8 | 10 | 60.8 |
| 2021 | 50.8 | 8.2 | 59 |
| 2022 | 50.8 | 9.8 | 60.6 |
| 2023 | 41.2 | 11.1 | 52.3 |
| 2024 | 0 | 1.7 | 1.7 |
| 2025 | 0 | 6.9 | 6.9 |
| 2026 | 0 | 18.2 | 18.2 |
| TOTAL | 244.4 | 81.3 | 325.7 |
Estimated TJS-3 Delta-V Use by Year and Type in Table View
(based on data from Celestrak.org)
Neighborhood Watch Crew: SY-12 01/02 & SJ-23
The Shiyan-12 pair launched on 23 December 2021 on a LM-7A and reached GEO in early 2022. After circularizing their orbits the pair remained in vicinity of one another and received a visit from USA 270 (41744) (watch COMPSOC video) on ~7 January 2022. In Feb 2022 SY 12-01 headed east and SY 12-02 headed west to begin their patrols. For their first two years of operations SY 12-01/02 patrolled in antiphase (or out of phase by 180°…two satellites moving through the same cycle at the same rate but offset by exactly half a cycle). With only two effective GEO-neighborhood watch satellites China had one satellite heading east toward the ~178°E eastern limit while the other headed west for the ~17°E limit.
SJ-23 launched in Jan 2023 and after spending a couple of weeks in Geosynchronous Transfer Orbit circularized to GEO and moved straight into a GEO patrolling campaign, most prominently against China’s own Tianlian data-relay satellites: a <4 km approach on Tianlian-1 03 (Mar 2023), and an ~30–83 km pass of Tianlian-2 02 (Oct–Dec 2023). While China likely conducted maneuvers to create the close approach with favorable lighting conditions, these were fly-by collects meaning SJ-23 maintained its course and did not maneuver to extend collection of the nearby satellites.
During SJ-23’s first year on orbit, China conducted a series of apparent phasing maneuvers to integrate the satellite with the SY-12 pair, ultimately creating a three-satellite formation in which each spacecraft was separated by approximately 120°. This pattern solidified in early 2024 and continues today, with one member of the formation reversing direction at its patrol boundary approximately every 81 days. SY-12 01’s latest turnaround fit this rhythm precisely. From 9 to 10 August 2026, the satellite lowered its average altitude by approximately 62 kilometers to reverse its westward drift as it approached Tianlian-1-05 near 16.7°E. The maneuver marked SY-12 01’s seventh turnaround since its December 2021 launch and demonstrated the continuing coordination of the three-satellite formation.

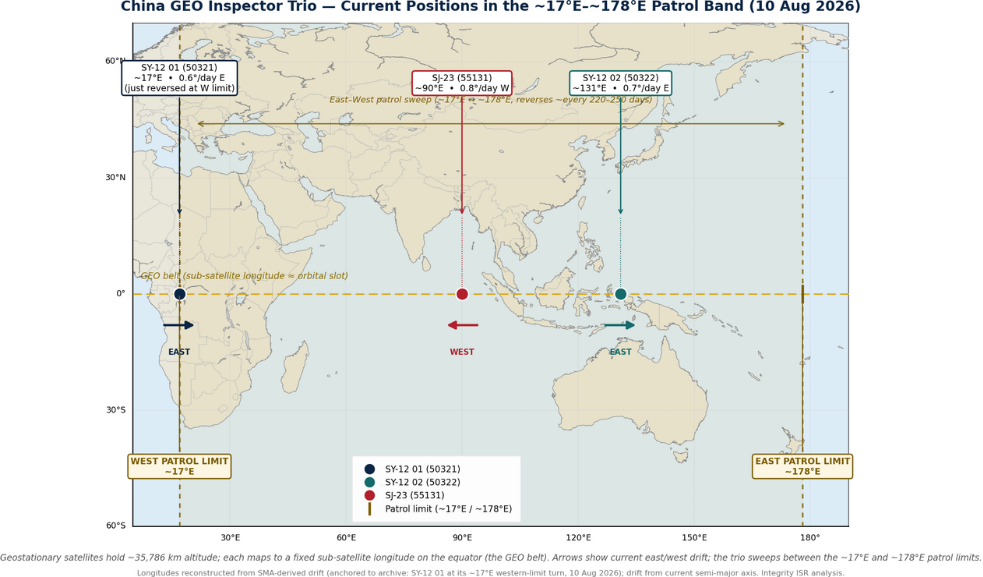

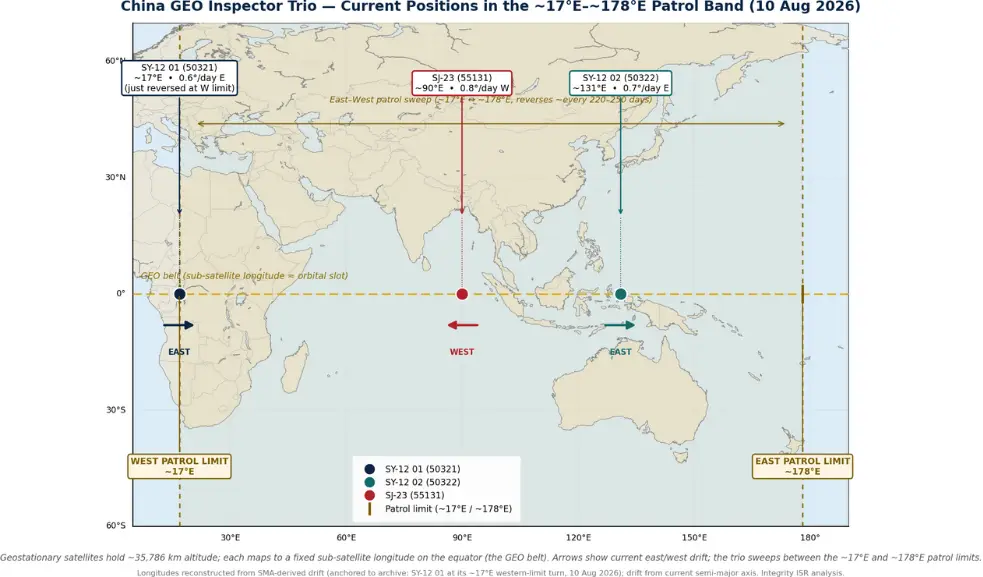

Mid-August 2026: Position of China’s GEO Neighborhood Watch Satellites
(based on data from Celestrak.org)
Energy Efficient & Similarly Inclined
Notably China has NOT conducted fuel expensive North/South stationkeeping maneuvers with any of its GEO neighborhood watch satellites. China launched SY-12 01/02 into an inclination biased orbit in which the sun/moon gravity reduced the inclination for both satellites from 0.5° to near 0.1° before beginning a gradual increase which continues through today (and will continue for the next couple of decades barring any inclination maintenance maneuvers). At the time of SJ-23’s launch the SY-12 01/02 satellites had returned to their original 0.5° inclination. China launched SJ-23 into a plane matched orbit with an initial 0.5° inclination and matching RAAN. As with SY 12 01/02, SJ-23’s inclination is now naturally increasing.
While none of the three satellites have maintained their inclination, all have conducted significant East/West maneuvers. As you all know East/West “stationkeeping” are in-track maneuvers to change the satellite’s SMA and require far less energy in comparison with North/South cross-track maneuvers. We covered this a while back...in GEO it takes about .04 m/sec to change SMA ~1km while you need ~54 m/sec to change inclination a 1°. In limiting their GEO neighborhood watch satellites to in-track maneuvers China has flown very energy efficient profiles. The one possible exception is SJ-23’s frequent in-track maneuvers in 2023 when it ran through its testing and conducted staging maneuvers to join the SY-12 01/02 formation.

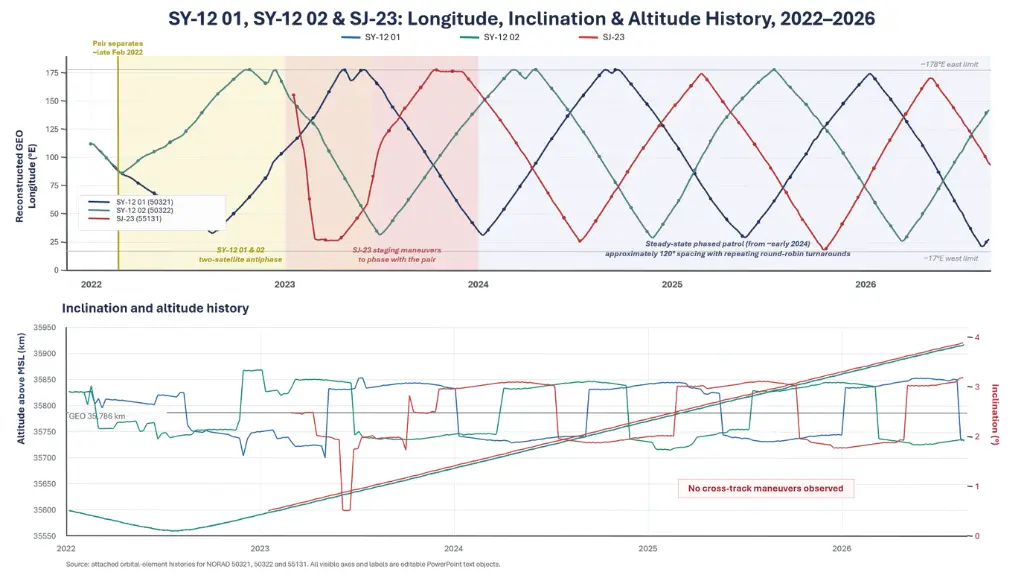

Longitude History of SY 12 01, 02 & SJ-23 satellites (top) shows continuous drift
SMA and Inclination (below) shows pattern of SMA changes and
No Cross Track Maneuvers
(based on data from Celestrak.org)

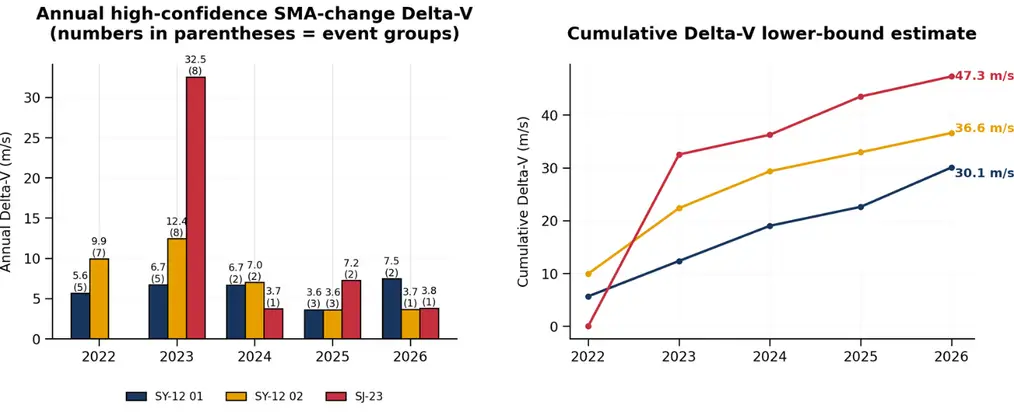

SY 12-01/02 & SJ-23 Maneuver Summary & Energy Estimate
(based on data from Celestrak.org)

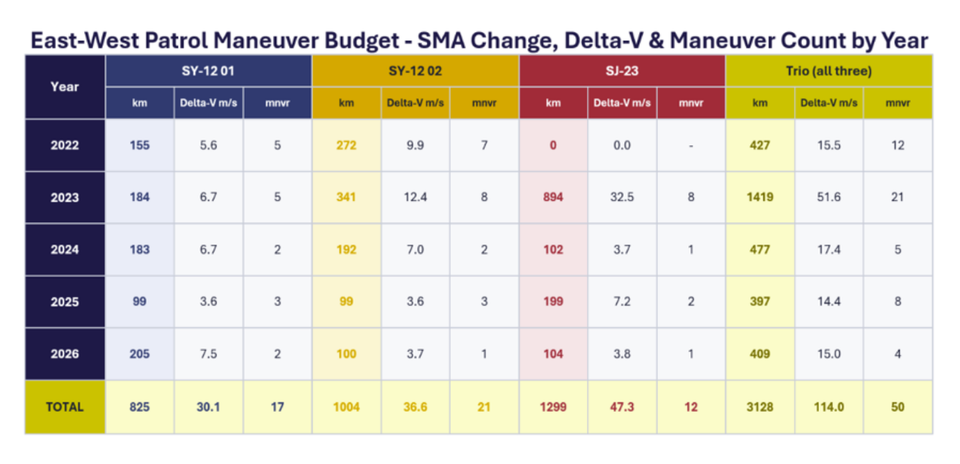

SY 12-01/02 & SJ-23 Maneuver Summary & Energy Estimate Table View
(based on data from Celestrak.org)
The orbital behavior of SY-12 01, SY-12 02, and SJ-23 suggests that China’s Neighborhood Watch architecture is primarily designed for broad, persistent monitoring of the GEO population. Individual Neighborhood Watch satellites occasionally pass within 50 kilometers of other spacecraft with favorable illumination, circumstances that could permit optical sensors to obtain high-resolution images. These opportunities appear incidental to a wider surveillance mission, however. Rather than matching orbital planes or loitering near selected targets, the three satellites repeatedly traverse the belt, potentially collecting lower-resolution imagery, detecting maneuvers, and providing observations that help maintain current cataloged orbit states across the GEO regime.
What’s Next for Neighborhood Watch
All three Neighborhood Watch satellites likely have several productive years of operations remaining. Their primary limitation will probably not be fuel, but a GEO equivalent of orbital decay. In the absence of cross-track maneuvers, natural inclination growth will progressively increase the orbital-plane separation, range, and relative velocity between the patrol satellites and potential collection targets. These changing geometries will reduce the duration and quality of characterization observation opportunities, making high-resolution imagery increasingly difficult and potentially impossible due to range or differential velocity. The satellites should remain useful for maneuver detection, broad-area surveillance, and catalog maintenance. China has undoubtedly gained valuable operational experience from the Shiyan, or “experiment,” and Shijian, or “practice,” satellite programs and will likely incorporate those lessons into future generations of GEO surveillance and characterization spacecraft.

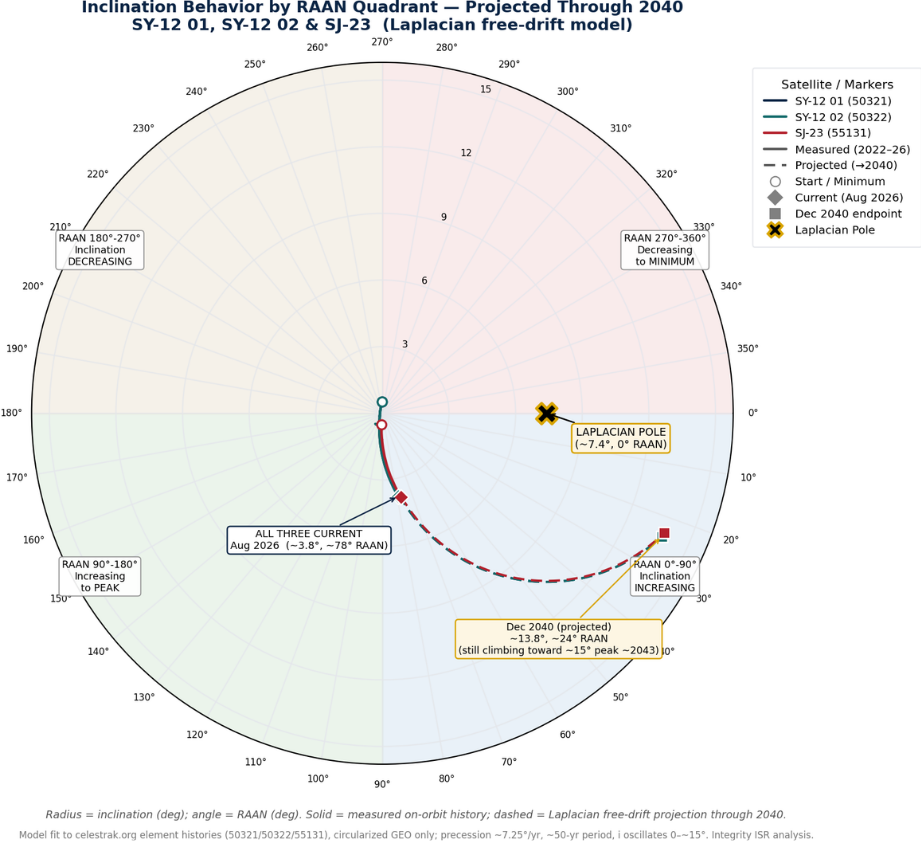

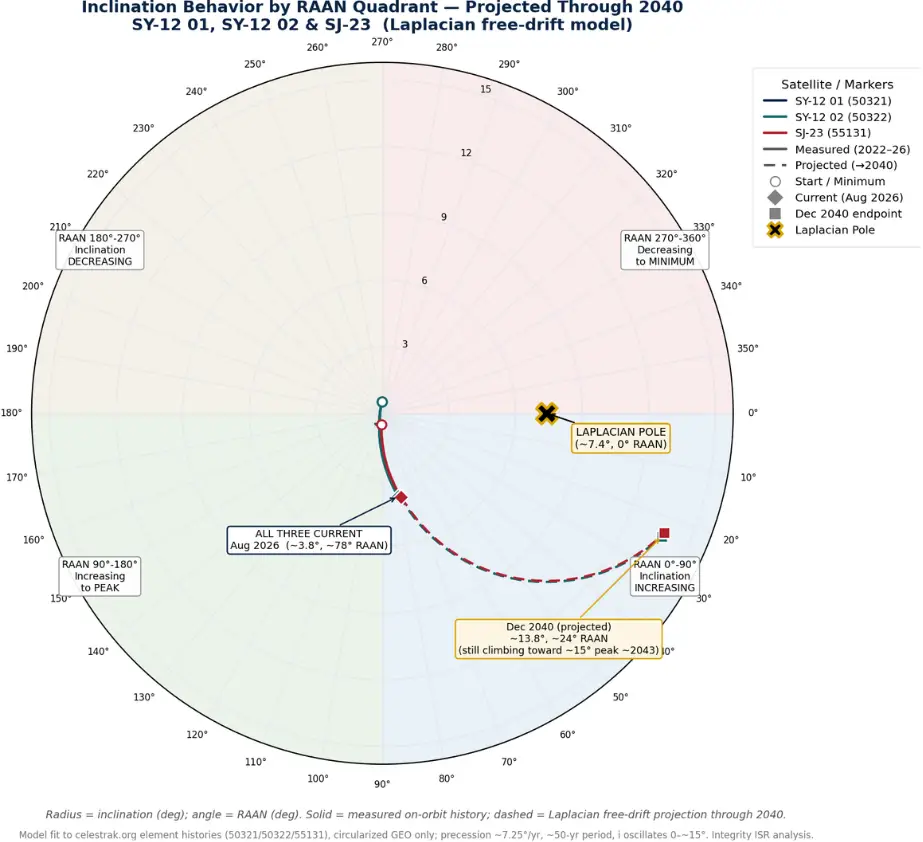

Radial Graph of Predicted SY 12-01/02 & SJ-23 Increasing Inclination Through 2040
(based on data from Celestrak.org)
Conclusion:
China’s GEO patrol architectures demonstrate a clear trade-off between the collection resolution and the propulsion required to achieve it. SJ-17 and TJS-3 expended significantly more delta-v than SY-12 01, SY-12 02, and SJ-23, particularly on cross-track maneuvers needed to alter or maintain their orbital planes. SJ-17’s approximately ±4° plane-change campaign in 2018 consumed an estimated 424 m/s in a single year and contributed to a lifetime cross-track expenditure of roughly 608 m/s, while TJS-3 accumulated approximately 238 m/s before apparently ending north-south stationkeeping in October 2023. That expenditure enabled the two Focused Patrollers to improve observation geometry, remain near selected targets for weeks or months, and conduct sustained characterization missions. The Neighborhood Watch trio made the opposite trade, allowing inclination to grow naturally while relying primarily on lower-cost, in-track maneuvers to create recurring fly-by collection opportunities across the GEO belt. The contrasting profiles indicate that persistent target characterization carries a substantial propulsion cost, while broad surveillance and catalog maintenance can be sustained far longer with a comparatively modest maneuver budget. Ultimately, the two approaches appear complementary: Focused Patrol provides detailed knowledge of selected spacecraft, while Neighborhood Watch provides persistent awareness of activity across the wider GEO population.
A complete GEO space-domain-awareness architecture will likely require two complementary classes of spacecraft: persistent Neighborhood Watch systems optimized for broad surveillance, maneuver detection, and catalog maintenance, and more maneuverable Focused Patrol systems designed to approach selected objects and conduct detailed characterization. Operating both types would allow China and other space powers not only to maintain an accurate account of what is in GEO, but also to understand how those objects evolve, maneuver, and potentially change mission. Detailed characterization could help analysts assess onboard capabilities, infer the roles individual satellites may play in national-security architectures, identify dependencies and vulnerabilities, and develop appropriate defensive, deterrence, and mission-assurance responses.

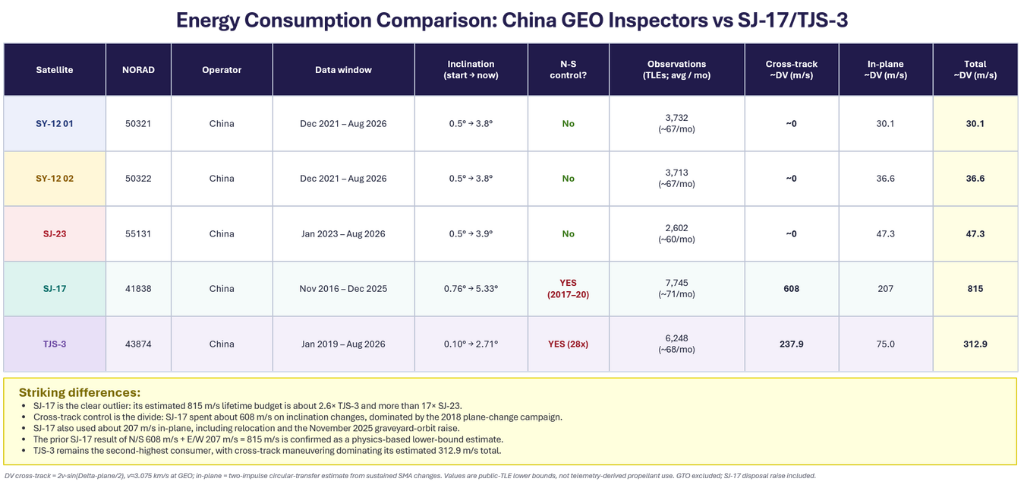

Neighborhood Watch vs Focused Patrol Delta-V Comparison
(based on data from Celestrak.org)
